HM78D-7553R3MLFTR

Mfr.Part # : HM78D-7553R3MLFTR

Manufacturer : TT Electronics

Description : INDUCT ARRAY 2 COIL 3.3UH SMD

Stock : 875

Product Category : Arrays, Signal Transformers

Current Rating - Parallel : 3.94 A

Current Rating - Series : 1.97 A

Current Saturation - Parallel : 5.4 A

Current Saturation - Series : 2.7 A

DC Resistance (DCR) - Parallel : 18.3mOhm

DC Resistance (DCR) - Series : 73.2mOhm

Inductance - Connected In Parallel : 3.3 µH

Inductance - Connected In Series : 13.58 µH

Mounting Type : Surface Mount

Number of Coils : 2

Operating Temperature : -40°C ~ 125°C

Package / Case : Nonstandard

Product Status : Discontinued at Digi-Key

Shielding : Shielded

Tolerance : ±20%

Contact Now

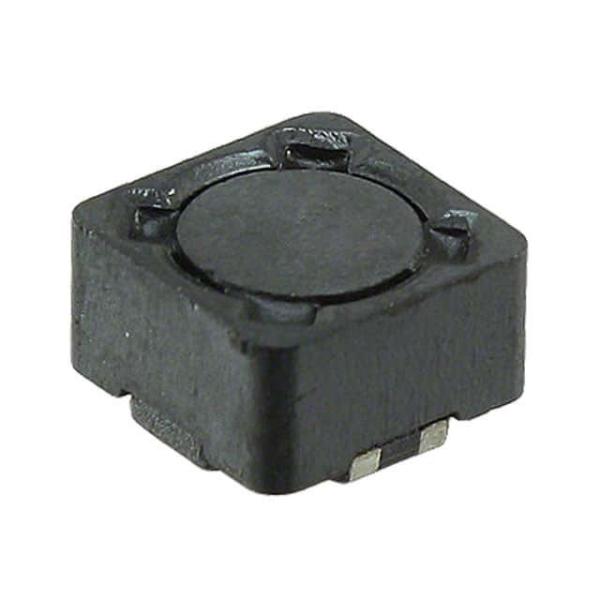

HM78D-7553R3MLFTR Images
