1N5244BTR

Mfr.Part # : 1N5244BTR

Manufacturer : onsemi

Description : DIODE ZENER 14V 500MW DO35

Stock : 29456

Product Category : Diodes - Zener - Single

Current - Reverse Leakage @ Vr : 100 nA @ 10 V

Impedance (Max) (Zzt) : 15 Ohms

Mounting Type : Through Hole

Operating Temperature : -65°C ~ 200°C

Package / Case : DO-204AH, DO-35, Axial

Power - Max : 500 mW

Product Status : Active

Supplier Device Package : DO-35

Tolerance : ±5%

Voltage - Forward (Vf) (Max) @ If : 1.2 V @ 200 mA

Voltage - Zener (Nom) (Vz) : 14 V

Contact Now

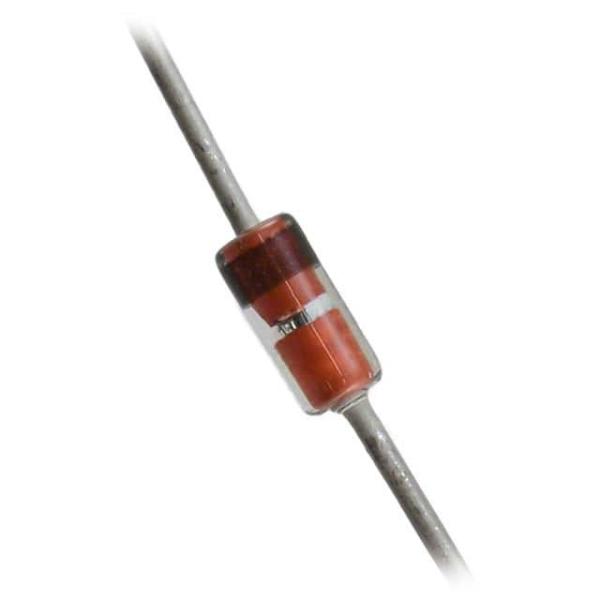

1N5244BTR Images
