RN2103ACT(TPL3)

Mfr.Part # : RN2103ACT(TPL3)

Manufacturer : Toshiba Electronic Devices and Storage Corporation

Description : TRANS PREBIAS PNP 50V 0.08A CST3

Stock : 10000

Product Category : Transistors - Bipolar (BJT) - Single, Pre-Biased

Current - Collector (Ic) (Max) : 80 mA

Current - Collector Cutoff (Max) : 500nA

DC Current Gain (hFE) (Min) @ Ic, Vce : 70 @ 10mA, 5V

Mounting Type : Surface Mount

Package / Case : SC-101, SOT-883

Power - Max : 100 mW

Product Status : Active

Resistor - Base (R1) : 22 kOhms

Resistor - Emitter Base (R2) : 22 kOhms

Supplier Device Package : CST3

Transistor Type : PNP - Pre-Biased

Vce Saturation (Max) @ Ib, Ic : 150mV @ 250µA, 5mA

Voltage - Collector Emitter Breakdown (Max) : 50 V

Contact Now

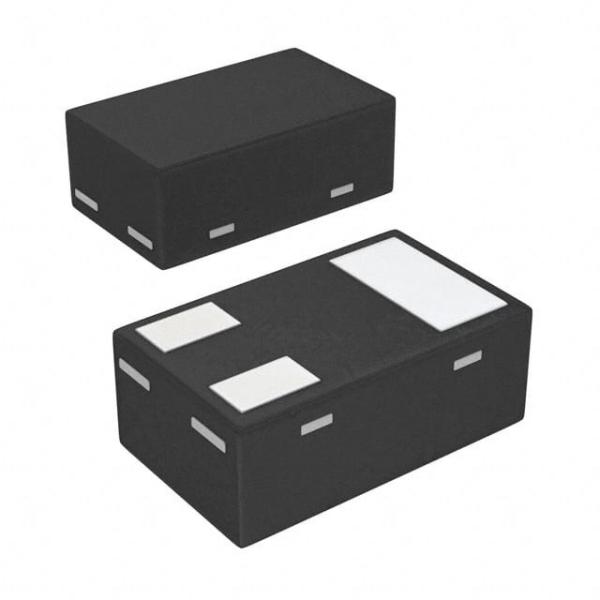

RN2103ACT(TPL3) Images
