ECH8690-TL-H

Mfr.Part # : ECH8690-TL-H

Manufacturer : onsemi

Description : MOSFET N/P-CH 60V ECH8

Stock : 14200

Product Category : Transistors - FETs, MOSFETs - Arrays

Current - Continuous Drain (Id) @ 25°C : 4.7A, 3.5A

Drain to Source Voltage (Vdss) : 60V

FET Feature : Logic Level Gate, 4V Drive

FET Type : N and P-Channel

Gate Charge (Qg) (Max) @ Vgs : 18nC @ 10V

Input Capacitance (Ciss) (Max) @ Vds : 955pF @ 20V

Mounting Type : Surface Mount

Operating Temperature : 150°C (TJ)

Package / Case : 8-SMD, Flat Lead

Power - Max : 1.5W

Product Status : Active

Rds On (Max) @ Id, Vgs : 55mOhm @ 2A, 10V

Supplier Device Package : 8-ECH

Contact Now

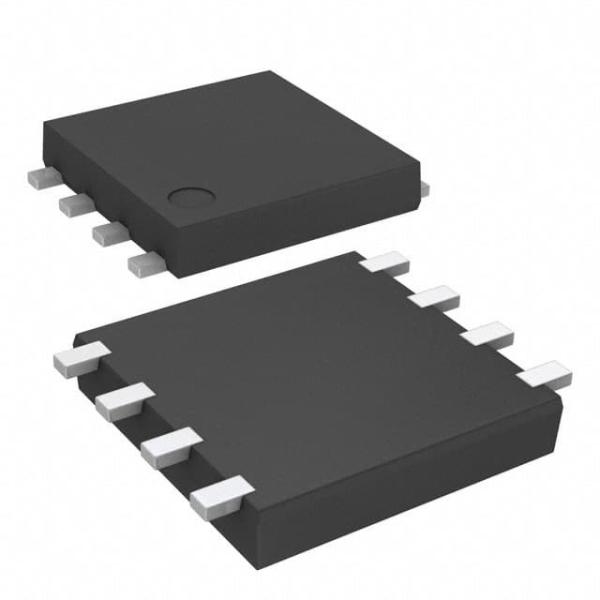

ECH8690-TL-H Images
