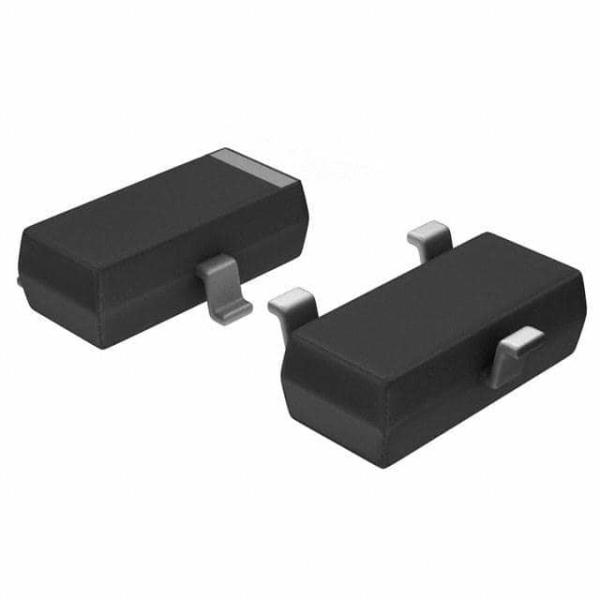

NDS332P

Mfr.Part # : NDS332P

Manufacturer : onsemi

Description : MOSFET P-CH 20V 1A SUPERSOT3

Stock : 82107

Product Category : Transistors - FETs, MOSFETs - Single

Current - Continuous Drain (Id) @ 25°C : 1A (Ta)

Drain to Source Voltage (Vdss) : 20 V

Drive Voltage (Max Rds On, Min Rds On) : 2.7V, 4.5V

FET Type : P-Channel

Gate Charge (Qg) (Max) @ Vgs : 5 nC @ 4.5 V

Input Capacitance (Ciss) (Max) @ Vds : 195 pF @ 10 V

Mounting Type : Surface Mount

Operating Temperature : -55°C ~ 150°C (TJ)

Package / Case : TO-236-3, SC-59, SOT-23-3

Power Dissipation (Max) : 500mW (Ta)

Product Status : Active

Rds On (Max) @ Id, Vgs : 300mOhm @ 1.1A, 4.5V

Supplier Device Package : SOT-23-3

Technology : MOSFET (Metal Oxide)

Vgs (Max) : ±8V

Vgs(th) (Max) @ Id : 1V @ 250µA
