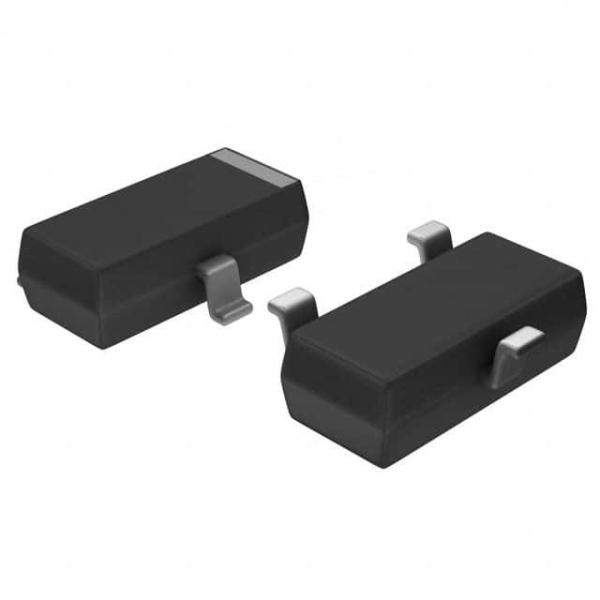

AO3414

Mfr.Part # : AO3414

Manufacturer : Alpha and Omega Semiconductor, Inc.

Description : MOSFET N-CH 20V 3A SOT23-3L

Stock : 863545

Product Category : Transistors - FETs, MOSFETs - Single

Current - Continuous Drain (Id) @ 25°C : 3A (Ta)

Drain to Source Voltage (Vdss) : 20 V

Drive Voltage (Max Rds On, Min Rds On) : 1.8V, 4.5V

FET Type : N-Channel

Gate Charge (Qg) (Max) @ Vgs : 6.2 nC @ 4.5 V

Input Capacitance (Ciss) (Max) @ Vds : 436 pF @ 10 V

Mounting Type : Surface Mount

Operating Temperature : -55°C ~ 150°C (TJ)

Package / Case : 3-SMD, SOT-23-3 Variant

Power Dissipation (Max) : 1.4W (Ta)

Product Status : Not For New Designs

Rds On (Max) @ Id, Vgs : 50mOhm @ 4.2A, 4.5V

Supplier Device Package : SOT-23-3

Technology : MOSFET (Metal Oxide)

Vgs (Max) : ±8V

Vgs(th) (Max) @ Id : 1V @ 250µA
